flowShield

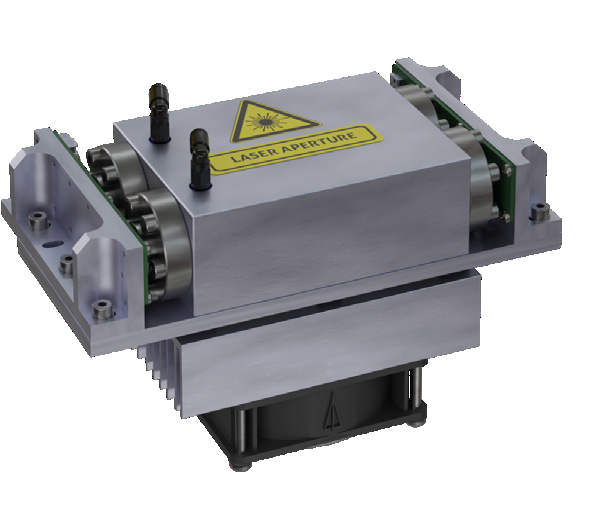

The flowShield is a UV-C light-based device designed to decontaminate sheath fluid and liquid waste in cell sorting processes. Using high-power UV-C LEDs in a flow-through reactor, it effectively inactivates a wide range of microorganisms, providing a reliable and energy-efficient method of preventing contamination without the need for labor-intensive chemical treatments or autoclaving.
Introduction
Aseptic cell sorting provides the prerequisites for antibiotic-free cell cultivation after sorting. However, potential contamination of the cell sorting liquid by microorganisms such as bacteria, yeast, viruses and fungi can inhibit the cultivation of the sorted cells. Such contamination can happen, for example, when the sheath fluid reservoir is opened for refilling or through contamination by compressed air that is required for cell sorter operation. For this reason, decontamination is usually accomplished by regular flushing the fluidics with sodium hypochlorite or ethanol, which is a timeconsuming procedure and residues of cleaning reagents in the fluidics are toxic for the cells of interest.
UV-C Decontamination Mechanism

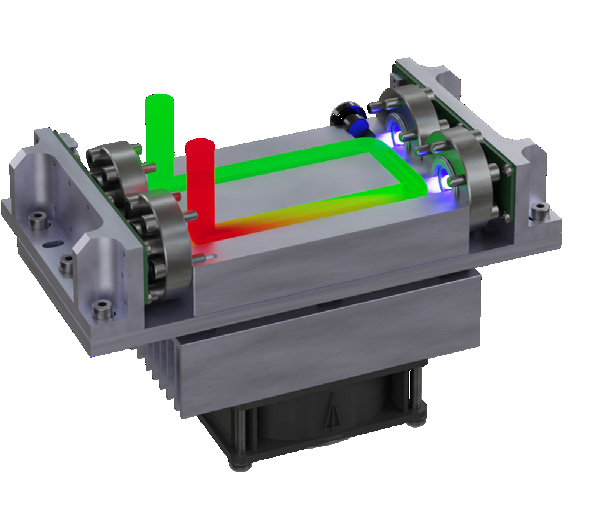

The lethal effect of UV-C light is well known for inactivating microorganisms without the side effects of a chemical treatment. The antimicrobial effect of UV-C light is based on the absorption of photons in the wavelength range of 200 – 280 nm by the DNA, resulting in the formation of pyrimidine dimers which inhibit DNA replication and consequently block transcription to RNA. This principle is used by the flowShield: UV-C emitting high-power LEDs are combined in a flow-through reactor to continuously irradiate the sheath fluid of a cell sorter or contaminated liquid waste. The resulting UV-C dose of four LEDs enables the reduction of P. aeruginosa by log 5.8.
Advantages
The flowShield effectively prevents the negative effects of germs on your cell culture. Using flow-through irradiation with UV-C LEDs to decontaminate the sheath fluid and liquid waste is an easy-to-use, robust, reliable and energy saving method.Conventional inactivation of contaminated liquid waste (autoclaving, chemical inactivation) is energy and labor intensive. Waste inactivated using flowShield is user friendly and guarantees that no harmful pathogens or genetically modified organisms (GMOs) enter the wastewater system or the surrounding ecosystem.
Publication available
Have a look at our recent paper about „A UV-C LED-based unit for continuous decontamination of the sheath fluid in a flow-cytometric cell sorter”
Specifications
| Size (W x H x D) | 200 mm x 167 mm x 238 mm |
| Weight | 5.7 kg |
| Reactor material | stainless steel |
| Wavelength range | 260 nm ± 5 nm |
| Max. operating pressure | 8 bar |
| Max. flow rate | 250 ml/min |
| Installation | horizontal |
| Power supply voltage | 100 VAC - 240 VAC |
| Max. power consumption | 120 W |
Broschures
APE_flowShield_rev.4.0.0 (pdf / english)
or
Email & Phone Contacts
APE has distributors around the world to give you the best support. Choose a country to find your local sales contact:
At a Glance
- UV-C dose up to 40 J/cm²
- Proven 5.8 log reduction of bacteria (P. aeruginosa) in sheath fluid
- Easy integration into the fluidic system via quick connectors
- Reliable stainless steel reactor including sheath fluid cooling
- Separate power supply and temperature controller
